Expanding Blade Mixer

Glascraft UK invented a Range of Air Powered Mixers in 1999. These have been based upon Industry Proven Gast® Rotary Vane Air Motor and Combined with Revolutionary Shaft and Mixer Head Designs. The range is Pneumatic please follow “Mixer Care” sheet to promote longevity. Suitable for Mixing a Wide Range of Materials.

• High-Shear “Cutting-in” Mixer action at higher r.p.m.s & performs as Agitator at lower r.p.m.s

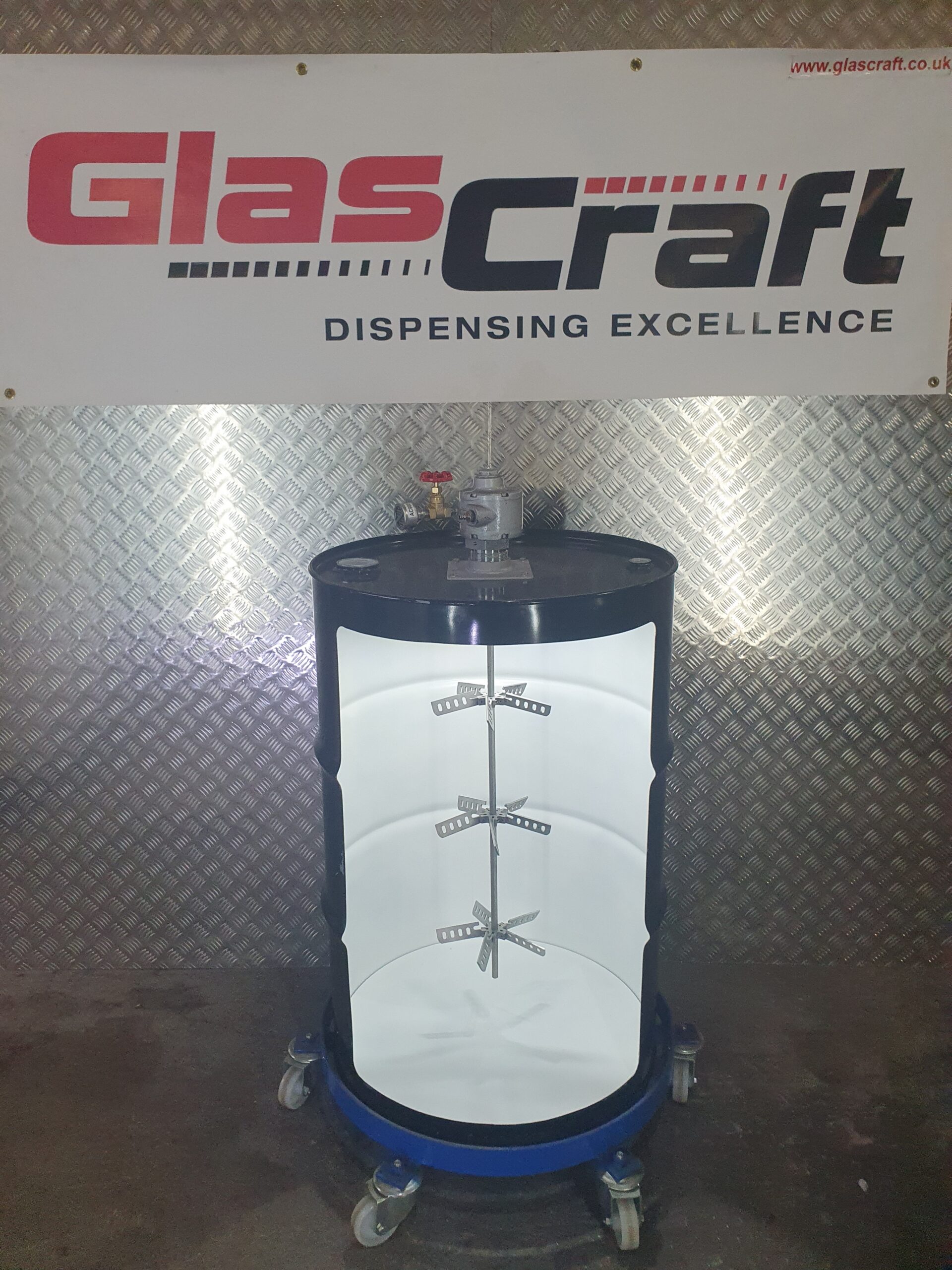

• 24C730 has 2 x 8” Stainless Steel Expanding Blades & 24C730-3B has 3 x 8” Stainless Steel Expanding Blades
• Designed for 200 Litre Drum with Central 2” Bung
• Do Not install in the edge mounted bung of standard tighthead Drum as it is too near the edge and the 8” blades will saw a hole in the side wall of the drum/barrel
• For standard tighthead drums or open top drums buy 24C730-200MB Drum Side Mixer
• Stainless Steel Hex Shaft is 750mm Long for Standard 200 Litre Drums (other shaft length options are available upon request)
• 7hp Industry Proven High Torque Gast® Air Motor
• Conforms to European Standard EN13463-1 None-Electrical Equipment for Explosive Atmospheres
• 87dB(A) max (reduced with silencer)
• Easily Adjustable from 0-3,000 r.p.m.
• Air Consumption 20-70cfm (30cfm @ 100psi is sufficient for most materials)
• Follow “Mixer Care” sheet
