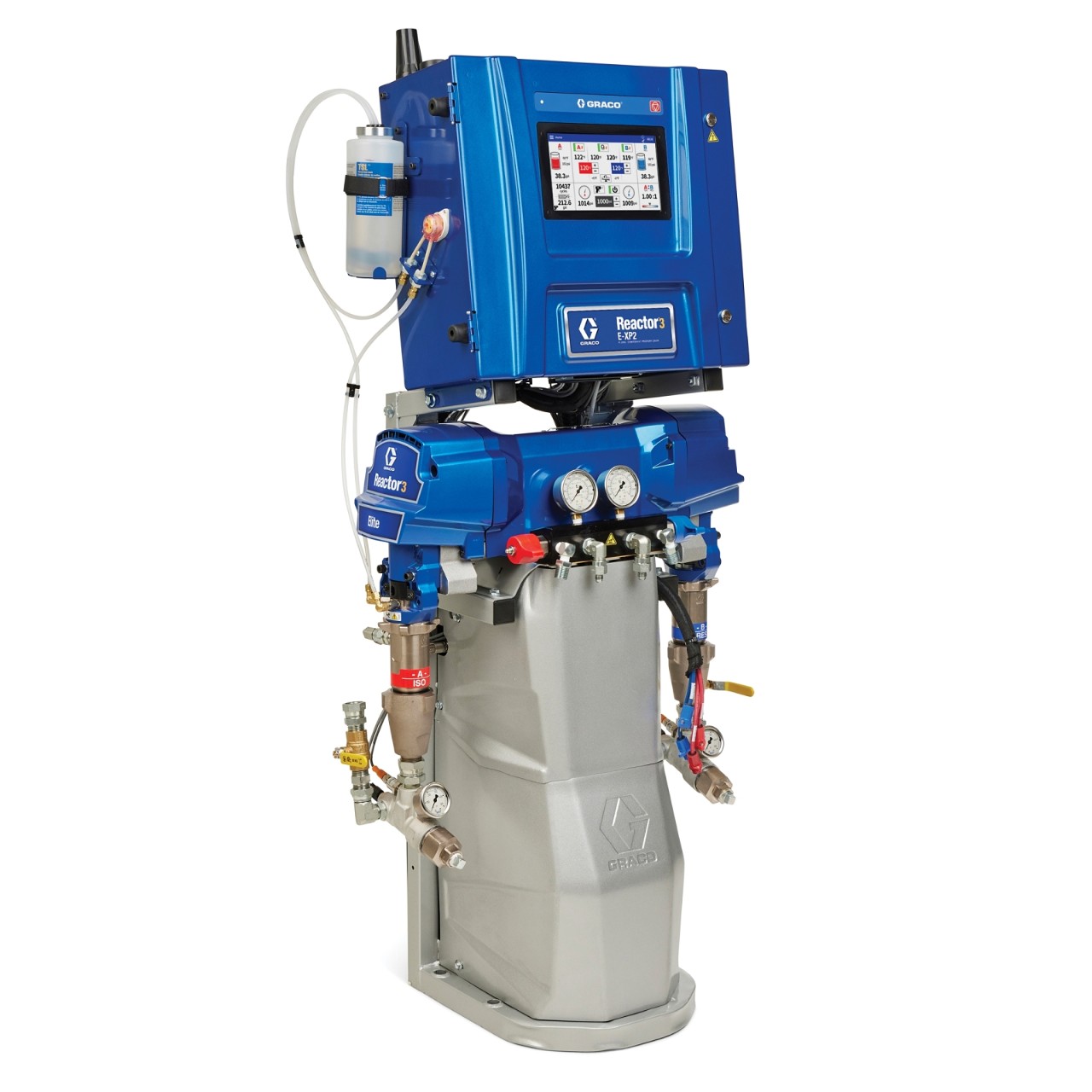

Reactor³ Electric Polyurea Systems

The Reactor³ E-XP2 & E-XP1 Electric Polyurea Spray Proportioners are Quieter and More Efficient than previous models. Available in “Elite”, “Pro” or “Standard”. The Elite Version is most popular as it is the Only Fully Connected System from Drum to Gun. Plus feature New 4 x (I/O) Input & Output options available for PLC or Robotic Applications.

• Optimized Spray Performance and Ratio Protection
• Intuitive, Robust and Simple Design
• Advanced Control and Reporting for Precision and Efficiency
• Xcelerator Heated Hoses for Independent Hose Heat
• Touchscreen with Advanced Software
• Katalyst Drum to Gun Intelligence (Elite with Core E1 Pumps)
• Auto-Pressure Balance (Elite & Pro)
• Oval Gear Flowmeters verify Fluid Ratio (Elite)
• Supply Pump Shut Down (with Core E1 Pumps)
• Power Management
• Reactor Connect Real-Time Control & Reports with Improved Antenna & GPS location
• Smart Control & Smart Supply (Elite with Core E1 Pumps)
• Auto Software Updates
• Improved Inlet Filters
• Improved TSL with Positive Pressure Iso Pump Lubrication
• E-XP2 4 Litres/min = 2m²/min @ 2mm thick
  • E-XP2 Max Hose Length 320ft/96m
  • E-XP2 Sprays Up in Air 2 Stories High
• E-XP1 2 Litres/min = 1m²/min @ 2mm thick
  • E-XP1 Max Hose Length 220ft/66m
  • E-XP1 Sprays “On-The-Level” only
