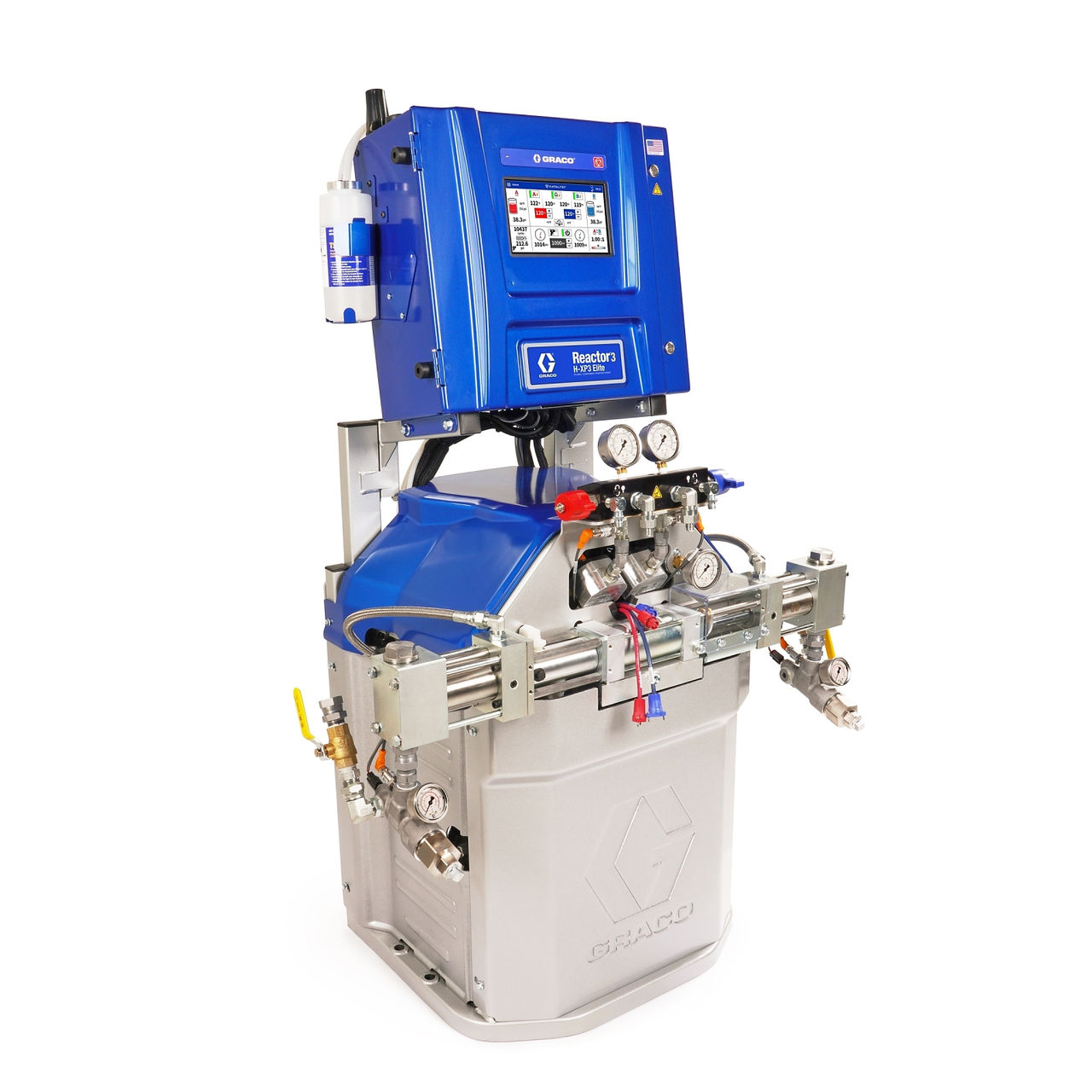

Reactor³ Hydraulic Polyurea Systems

The Reactor³ H-XP2 & H-XP3 Hydraulic Polyurea Spray Proportioners are Quieter and More Efficient than previous models. Available in “Elite”, “Pro” or “Standard”. The Elite Version is most popular as it is the Only Fully Connected System from Drum to Gun. Plus, features New 4 x (I/O) Input & Output options available for PLC or Robotic Applications.

• Optimized Spray Performance and Ratio Protection
• Intuitive, Robust and Simple Design
• New Direct Drive Hydraulic Pump
• New Hydraulic Cooling System
• New Easy Access Oil Maintenance Points
• Horizontal Pumpline for Superior Longevity of Service
• Multiple Pumps for None 1:1 Options
• Advanced Control and Reporting for Precision and Efficiency
• Xcelerator Heated Hoses for Independent Hose Heat
• Touchscreen with Advanced Software
• Katalyst Drum to Gun Intelligence (Elite with Core E1 Pumps)
• Auto-Pressure Balance (Elite & Pro)
• Oval Gear Flowmeters verify Fluid Ratio (Elite)
• Supply Pump Shut Down (with Core E1 Pumps)
• Power Management
• Reactor Connect Real-Time Control & Reports with Improved Antenna & GPS location
• Smart Control & Smart Supply (Elite with Core E1 Pumps)
• Auto Software Updates
• Improved Inlet Filters
• Improved TSL with Gravity Fed Iso Pump Lubrication
• H-XP3 8Litres/min = 4m²/min @ 2mm thick
  • H-XP3 Max Hose Length 420ft/126m
  • H-XP3 Sprays Up in Air 10 Stories High
• H-XP2 4 Litres/min = 2m²/min @ 2mm thick
  • H-XP2 Max Hose Length 320ft/96m
  • H-XP2 Sprays Up in Air 2 Stories High
